128 Channel Microdrive and Chamber System

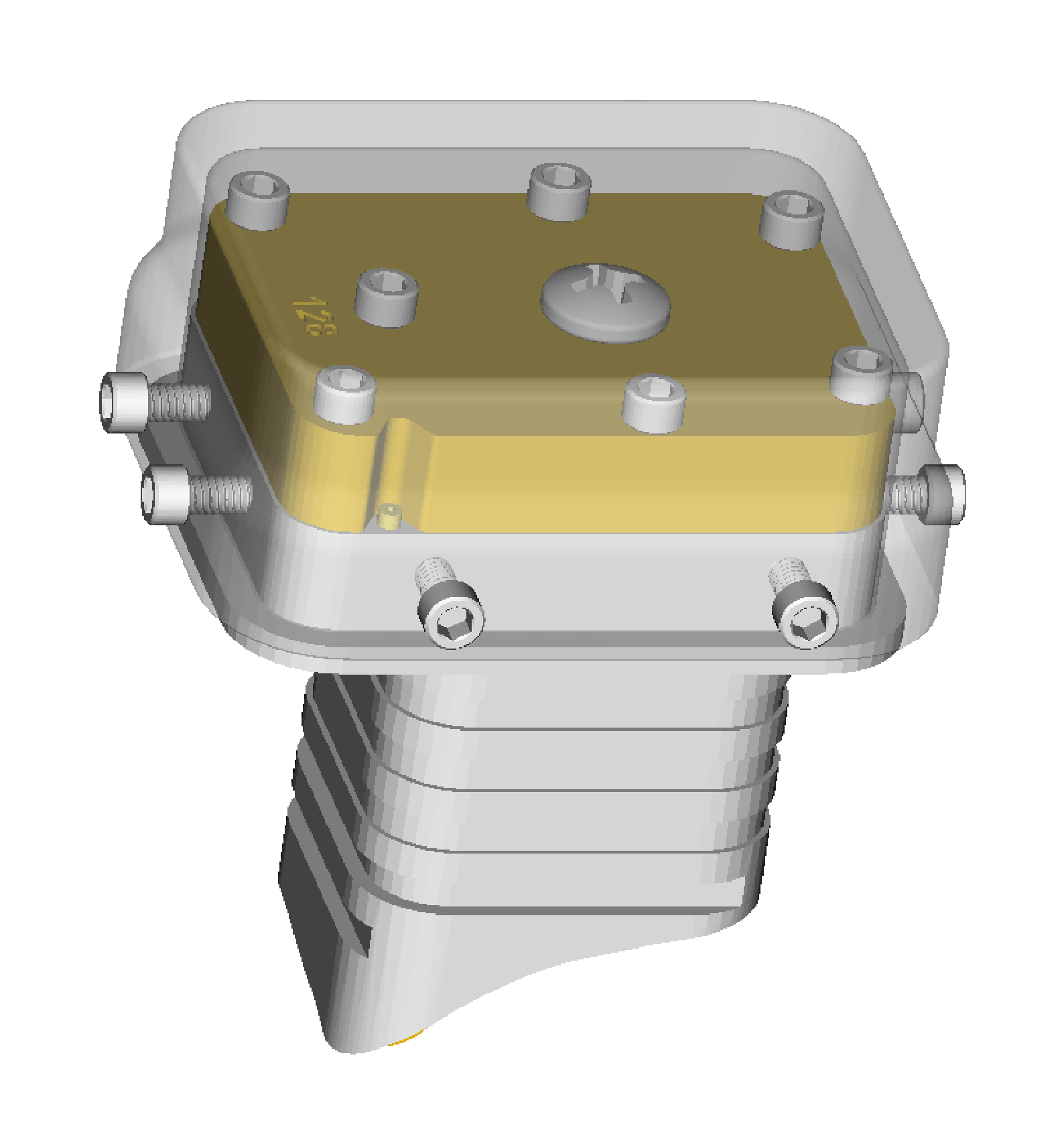

A computer-generated image of an engine component, showing a rectangular metallic housing attached with screws, with a yellow plate inside, and a metallic cylindrical section below with fins.
Exploded view of a mechanical assembly with screws, a yellow component, and housing parts.

Form-Fitting Recording Chamber

  • Water tight seal to prevent infection

  • Bottom surface contoured to the cranial surface

  • Made from titanium or MRI compatible PEEK

  • Chamber mounts using bone cement and bone screws

  • Pricing:

    • Chamber only: $3,000

    • Full System: $3,500

Exploded view of a mechanical or electronic device showing various internal components and screws.
A digital rendering of a mechanical or electronic device with a metallic body, featuring various colored components and a series of yellow pins at the bottom.

Form-Fitting Microdrive System

***32mm travel system shown

  • 128 independently moveable microelectrodes

  • Movement resolution is 0.125mm per screw rotation

  • Semi-chronic implantation

  • Water tight seal to prevent infection

  • Requires use of Form-Fitting Chamber System

  • Available in three travel options, pricing based on travel length. Electrodes are not included the price.

    • 16mm: $19,800

    • 32mm: $22,100

    • 42mm: $23,000

A beige-colored ancient vase with two handles and a rectangular hole with tiny holes on its surface, likely for sound emission.

Additional Specifications
